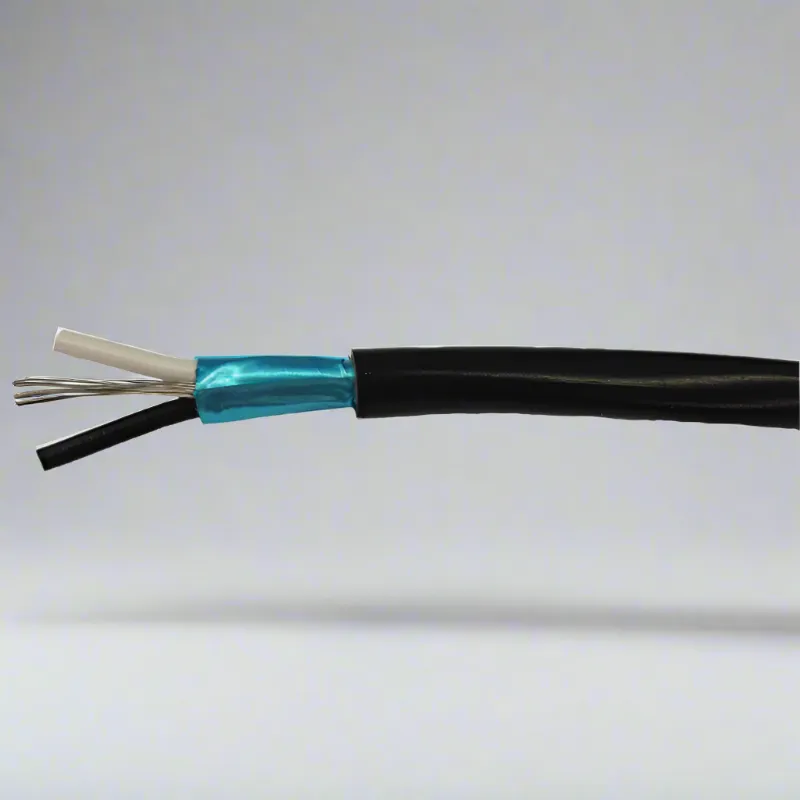

Instrumentation Cables-Overall Screened, Multi Pair
| Application: | Internal and external inter-connections of electronic apparatus such as computer, intercoms, telemetering, signaling and alarm systems. |
|---|---|
| Conductor: | Plain annealed copper wire. |
| Insulation: | PVC V90HT or V75 |
| Screen: | Aluminum tape screen, polyester mylar tape lapping and 7/0.20mm tinned copper drain wire. |
| Sheath: | PVC 5V-90 or 4V-75 |
| Voltage: | These cables are run with a 240V radial thickness sheath and must not be connected to mains power supplies. |
| Standards: | AS1125 (conductor) AS/NZS 3808 (PVC) |
| Code | Stranding No/mm No of Pairs | Nom. O/D mm | Nom Area mm2 | Insu.Thick mm | Sheath Thick mm | Reel |
|---|---|---|---|---|---|---|
| C2SC7/.3 | 7/0.30 1P | 5.8 | 0.5 | 0.5 | 0.8 | 100m |
| C2SC24/.2 | 24/0.20 1P | 6.8 | 0.75 | 0.6 | 0.8 | 100m |
