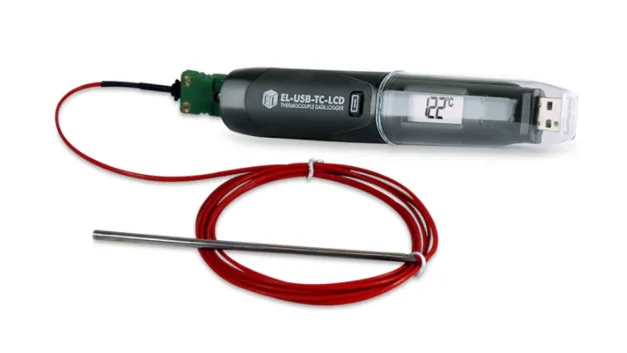

Stand Alone Data Logger

• This stand-alone data logger measures and stores over 32,000 temperature readings from a K, J, or T type thermocouple.

• A thermocouple is attached via the thermocouple socket at the base of the unit.

• The user can easily set up the logger and view downloaded data by plugging the module into a PC's USB port and using the supplied software.

• Data can then be graphed, printed and exported to other applications.

• The high contrast LCD can show several different temperature variables.The user can cycle between these using the push button.

• The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year.

• Features : -200 to 1300°C (-328 to 2372°F)

• Measurement Range (K-type), -100 to 900°C (-148 to 1652°F)

• Measurement Range (J-type), 200 to 400°C (-328 to 752°F)

• High contrast LCD, with 4-digit temperature display

• USB Interface for Set-up and Data Download, 2 User-Programmable Alarm Thresholds, Bright Red and Green LED Indication

• Immediate, delayed, and push-to-start logging

• Supplied with basic K-type thermocouple rated from 0 to 300°C (32 to 446°F

• Supplied complete with replaceable internal lithium battery.

• TM-6150
