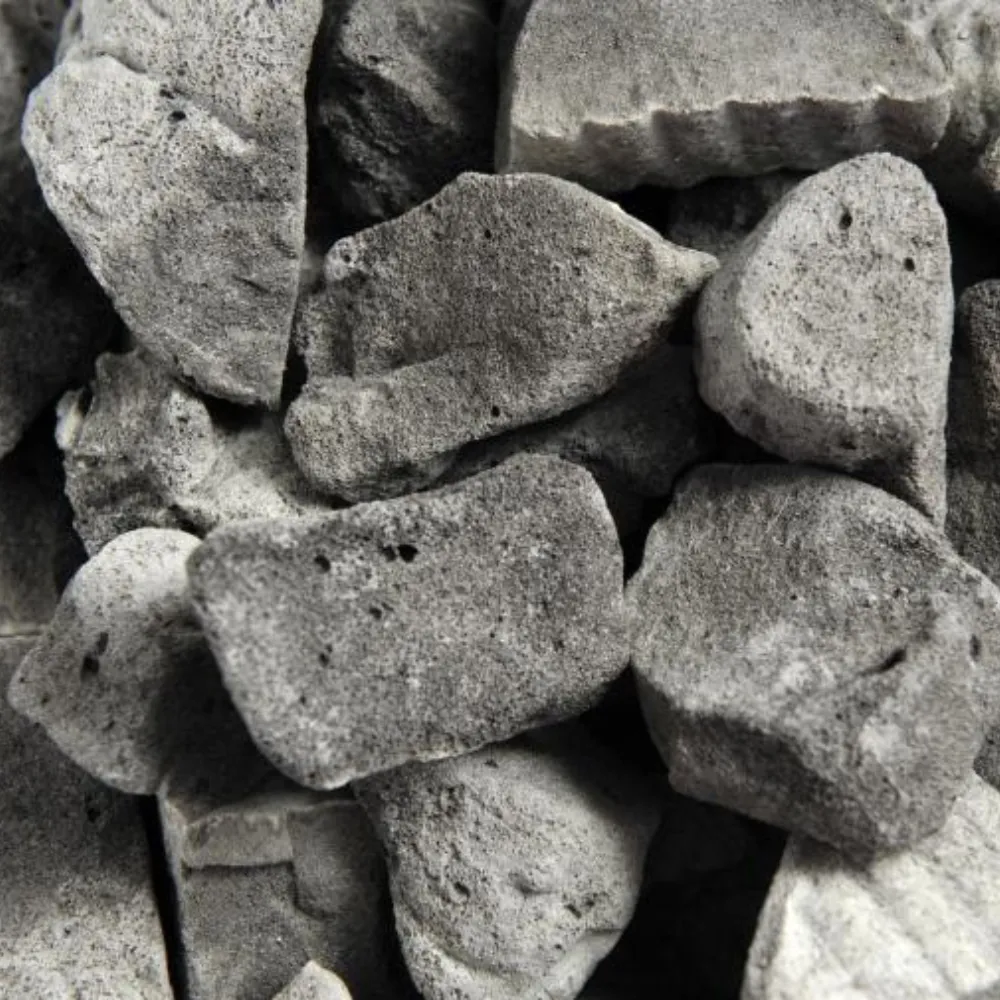

GEOCELL foam glass is a highly heat-insulating, ecological alternative for insulation to building floors from 99% recycled glass.

Excellent thermal resistance capability – (certified conductivity of 0.08 W/mK).

High compressive strength: the lattice structure creates a high compressive strength of >570 kN/m².

Closed cell – nil capillary action

Superior hydraulic conductivity: the uniformed grain size and no fines create the highest degree of drainage capacity without causing settlement to the building or slab.

Inert: meets the highest standards for inert building material. Leaching tests did not show any adverse effects.

100% ecological: made from 99% recycled glass

Light weight: low density 150 kg/m³

Fire resistance: In compliance with EN Class A1 sintering point above 700°C.

Health-friendly material: GEOCELL is pure glass, inert, non-toxic, solvent-free, fibre-free, odour-neutral, anti-allergen and radiologically completely safe. The amorphous glass structure prevents the danger of silicosis

Resistant: GEOCELL is resistant to frost, heat, decay, ageing, bacteria, moisture, acids and organic solvents and provides no host for pests, rodents or mould growth. GEOCELL® is perfectly suited for the combination with alkaline binders like lime, cement, water glass and other binders.

Long-term stability: GEOCELL is dimensionally stable even after years (no material shrinkage, no swelling).

Environment friendly: Using post-consumer recycled glass for the production of GEOCELL saves natural resources.

Just like glass: GEOCELL is recyclable and supports a sustainable building regarding LEED.

Volume: 1m³
Density: 150kg/m³
Declared Thermal Conductivity: 0.080 W/(m·K)
Granular Size: 10 to 60mm

Applications

Foundation details.
Timber frame floor (without slab).
Landscaping.
Suitable for angled construction.
Lightweight back fill (vaulted ceiling).
Sports pitches/stadium

Certification

DIN 4102 (DIN EN 13501-1)
DIBT Approval Z – 23.34 – 1579
Construction material class A1 and suitable as fire extinguishing agent.
