The Varilight Ultraflat collection offers minimalism with style. The plate is just 1mm thick and wall boxes should be recessed into the wall to achieve a flush finish. Each switch does need to be earthed and is designed to fit into UK standard wall boxes. Covered by the Varilight 10 year guaranty. Single plate size: 89mm x 89mm. Double plate size: 89mm x 149mm. 13A Plug sockets: Require a 35mm deep wall box. USBÕs are 2.1A. Rocker & Toggle Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 25mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 35mm wall box. 5 Amp Socket: Require a 35mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Cooker Switch: Require a 35mm deep wall box. Fused Spur: Require a 35mm deep wall box. TV Socket: Require a 25mm deep wall box. 20 Amp: Require a 25mm deep wall box. Fan Isolator: Require a 35mm deep wall box. 10A. Flex Outlet: Require a 25mm deep wall box. 16A Flex Outlet Plate. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 35mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 35mm deep wall box.

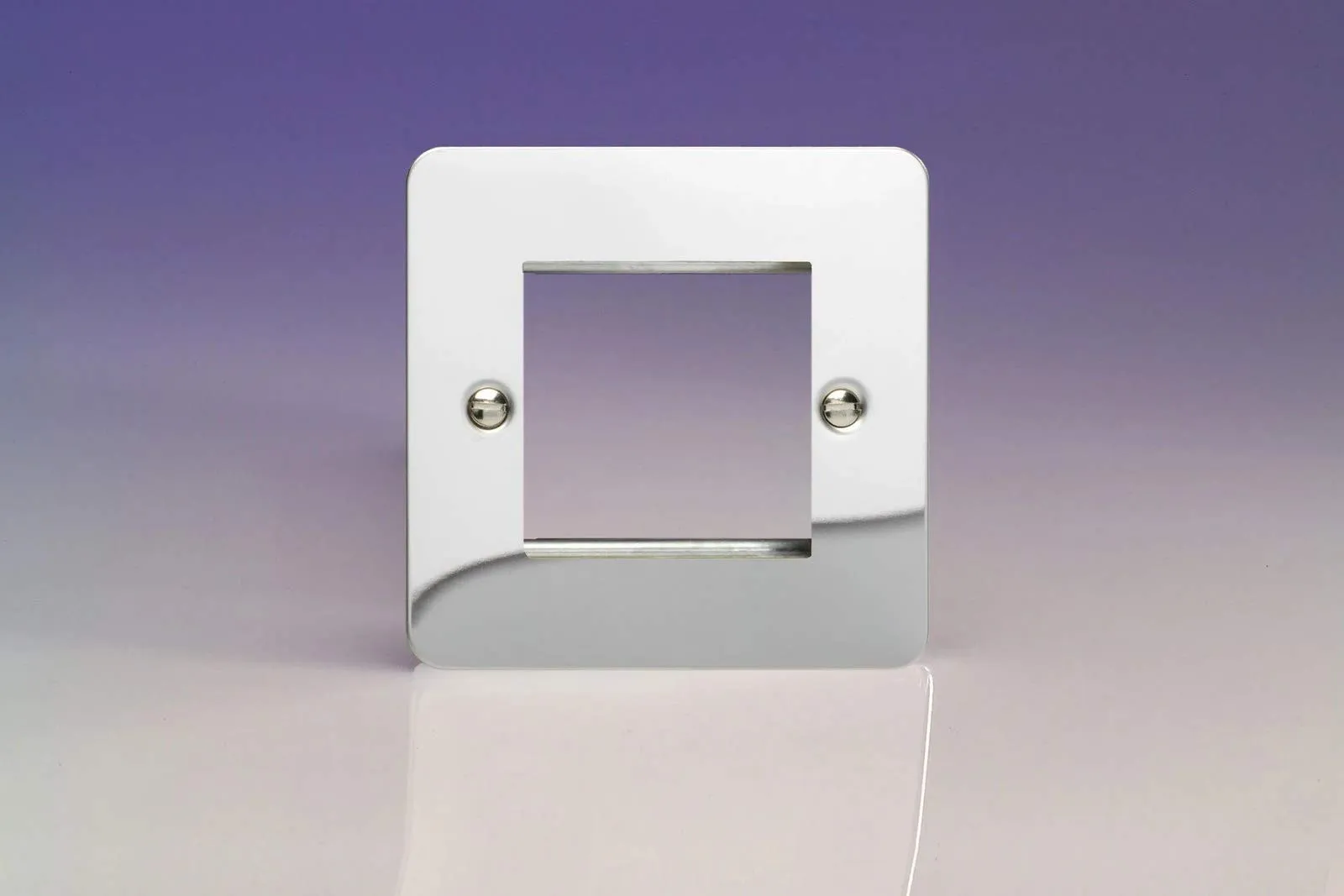

_DataGrid Plate
_DataGrid Plate (2 Grid Spaces)
_Clip in any combination of DataGrid modules
_Create your own data combinations
_Contemporary, ultra-slim faceplate
